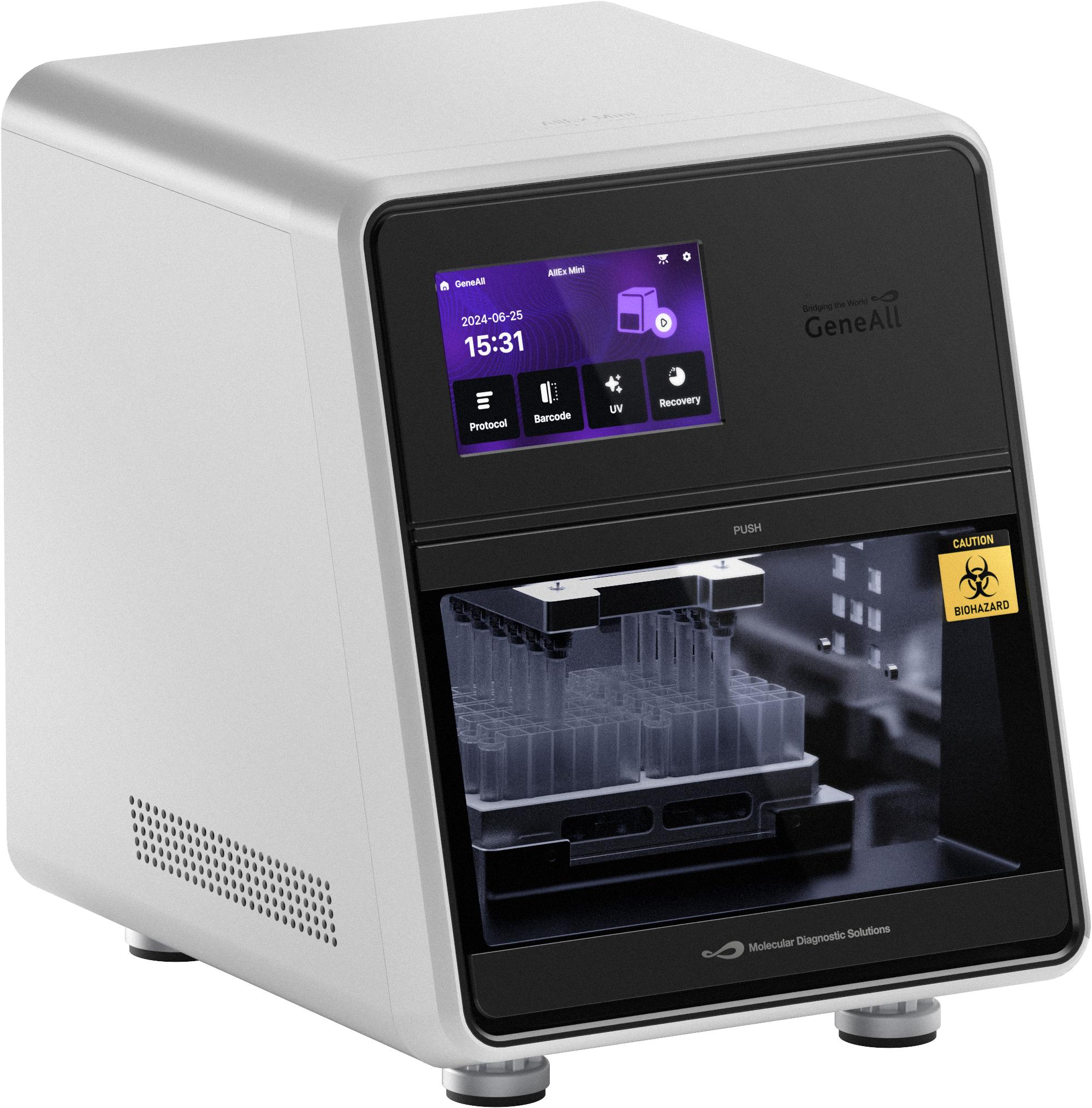

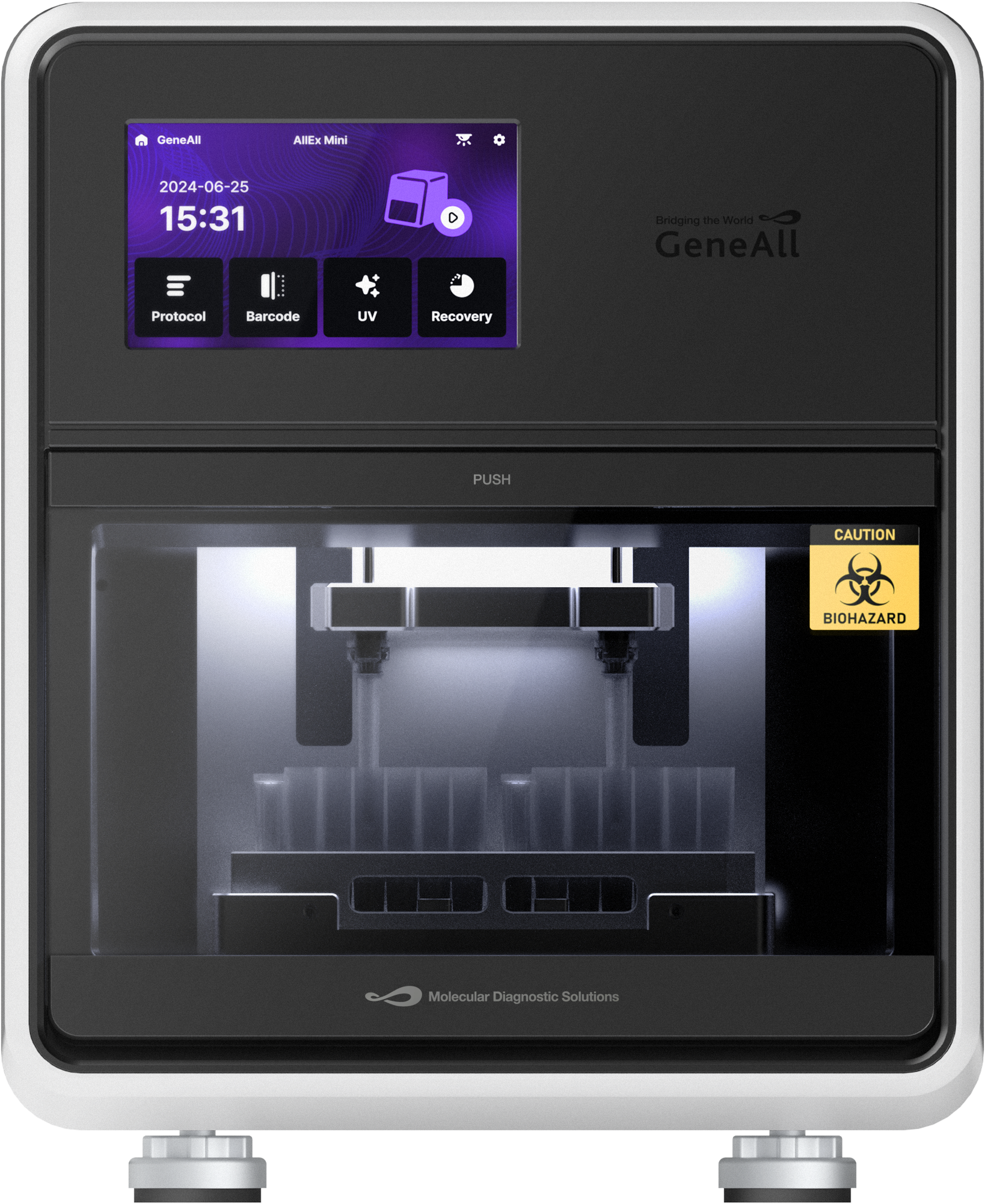

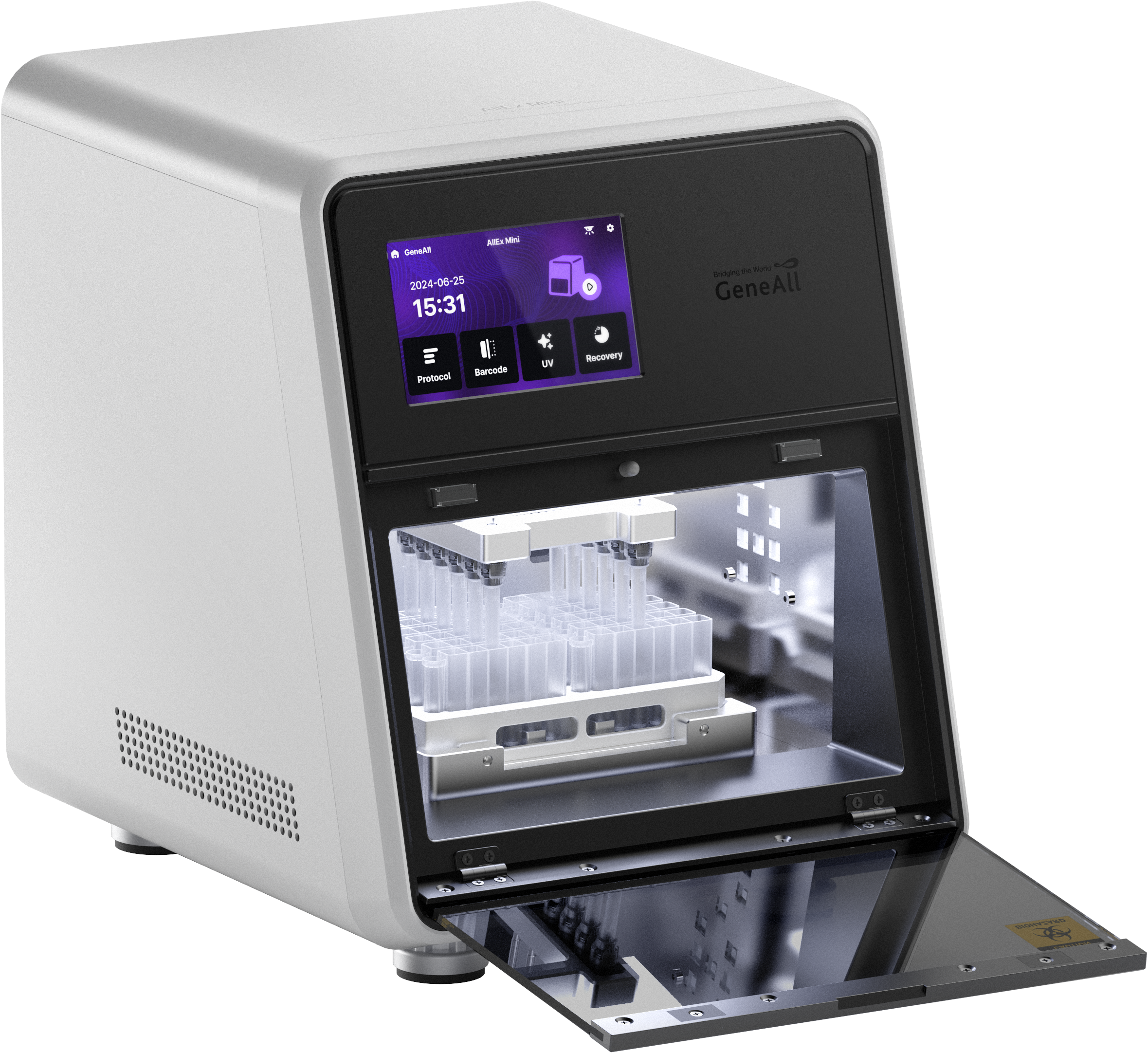

The AllEx® Mini is an automated nucleic acid extraction system with a compact footprint that fits into any lab environment. Capable of extracting up to 12 samples in under 10 minutes, AllEx® Mini is optimized for simplicity- load the cartridge, and the system takes care of the rest. Automated strip attachment, magnetic bead transfer, lysis, washing, and elution steps are all performed seamlessly, minimizing hands-on time and reducing the risk of error. Its fully integrated design, featuring automatic protocol selection through a built-in barcode scanner, guarantees consistent, high-quality nucleic acid extraction with every use.
The AllEx® Mini is an automated nucleic acid extraction system with a compact footprint that fits into any lab environment.
Capable of extracting up to 12 samples in under 10 minutes, AllEx® Mini is optimized for simplicity- load the cartridge, and the system takes care of the rest.
Automated strip attachment, magnetic bead transfer, lysis, washing, and elution steps are all performed seamlessly, minimizing hands-on time and reducing the risk of error.
Its fully integrated design, featuring automatic protocol selection through a built-in barcode scanner, guarantees consistent, high-quality nucleic acid extraction with every use.
| Extraction system method | Magnetic beads transfer |
| Processing capacity | 1 to 12 samples per run |
| Run time | 10-20 minutes for 12 samples, protocol-dependent |
| Starting volume | Up to 300 μl |
| Display | 5 inch TFT LCD touch screen |
| Dimensions | 270(W) x 330(D) x 330(H) mm |
| Weight | 14.0 kg |
| Power input | 85–264 VAC, 50/60 Hz, 3 A |
| Magnetic bead recovery rate | ≥ 98% |
| Noise | ≤ 45 dB |
| Program Transfer | USB flash drive |
| Contamination control | UV LED |
| Feature |
|
|
| |
|---|---|
