AllEx® Genomic DNA Kit

AllEx® Genomic DNA Kit serves exceptional solution for genomic DNA extraction from various clinical samples such as blood, body fluids and tissue using AllEx®64 Automated Nucleic Acid Extraction System. It provides high quality DNA, free from inhibitors of PCR, and suitable for a variety of downstream applications including PCR, qPCR, NGS, and enzymatic reaction.

SCALE / SIZE

Overview

AllEx® Genomic DNA Kit serves exceptional solution for genomic DNA extraction from various clinical samples

such as blood, body fluids and tissue using AllEx®64 Automated Nucleic Acid Extraction System.

It provides high quality DNA, free from inhibitors of PCR, and suitable for a variety of downstream applications

including PCR, qPCR, NGS, and enzymatic reaction.

01

Format

  • Magnetic bead technology
  • Compatible with AllEx®64 Automated Nucleic Acid Extraction System
02

Stable and consistent result

  • High yield and purity
  • The use of RNase A and Proteinase K can help improve the yield & purity of total DNA.
03

Simple and easy procedure

  • Easy of use with novel, pre-filled reagent cartridges (single/plate)
04

Applications

  • Suitable for the downstream applications such as PCR, qPCR, NGS, enzymatic reactions and other molecular diagnostic testing.

specifications

Technical Information

Features Specifications
Format

Compatible with magnetic bead-based equipment

(AllEx®64 Automated Nucleic Acid Extraction System)
Applicable samples
  • Tissue
  • Cultured cell
  • Whole blood
  • Serum
  • Plasma
  • Buffy coat
  • CSF
  • BAL
  • Urine
  • Body fluid
  • Dried blood spot
  • etc.
Maximum amount of starting samples
 Varies depending on sample type
Starting volume for pre-filled cartridge
 Up to 300 μl
Preparation time P1 Protocol : 12' 13''
P2 Protocol : 21' 53''
Elution volume Up to 100 μl
Storage conditions Store at room temperature (15 ℃ to 25 ℃)

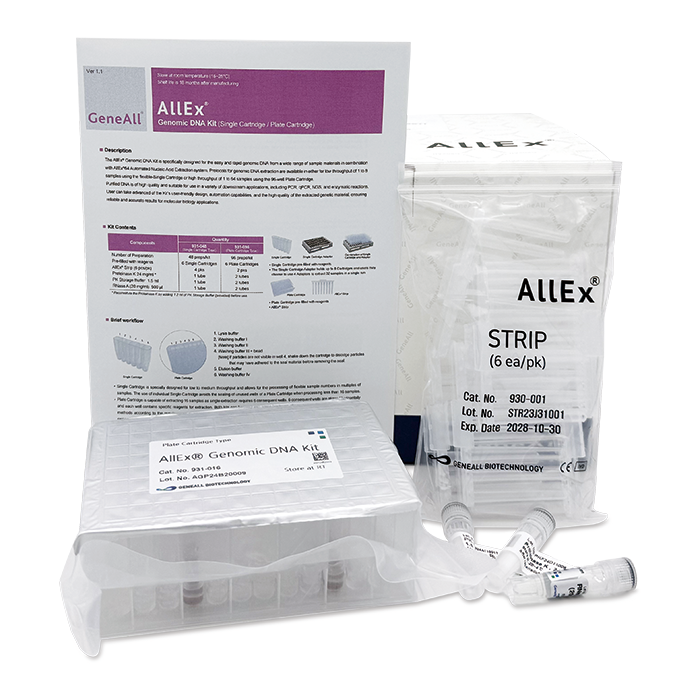

Kit Contents

Kit

AllEx® Genomic DNA Kit

AllEx® Genomic DNA Kit

Cat. No.

931-048

931-096

Type

Single Cartridge

Plate Cartridge

Number of Preparation

48T

96T
Pre-filled with reagents 6 pks (8 Single Cartridges/pk) 6 pks (1 Plate Cartridge/pk)
AllEx® Strip (6 pcs/pk) 4 pks 2 pks
Proteinase K 1 tube x 24 mg 2 tubes x 24 mg
PK Storage Buffer 1 tube x 1.5 ml 2 tubes x 1.5 ml
RNase A (20 mg/ml) 1 tube x 500 μl 2 tubes x 500 μl

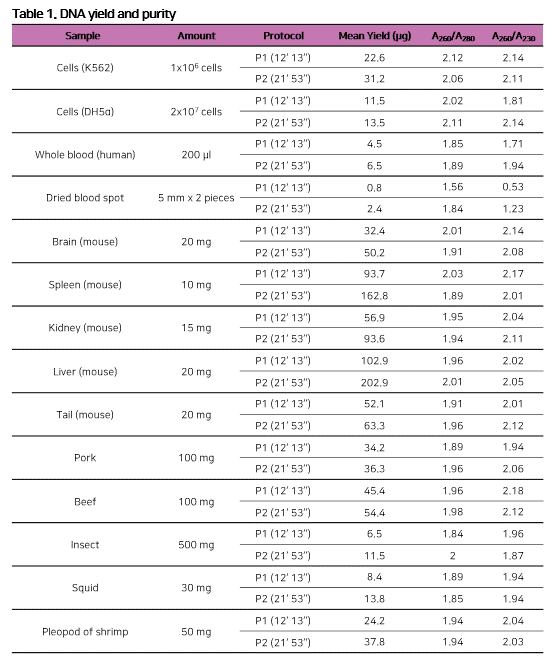

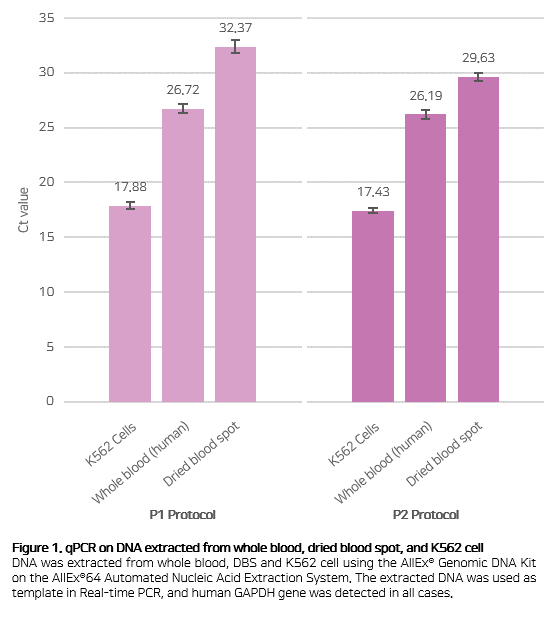

Technical Data






Addtional Information

YouTube - AllEx®64 Automated Nucleic Acid Extraction System



Protocols

Handbooks

Supplementary Protocols

Resources

Application Notes

References

Brochures
